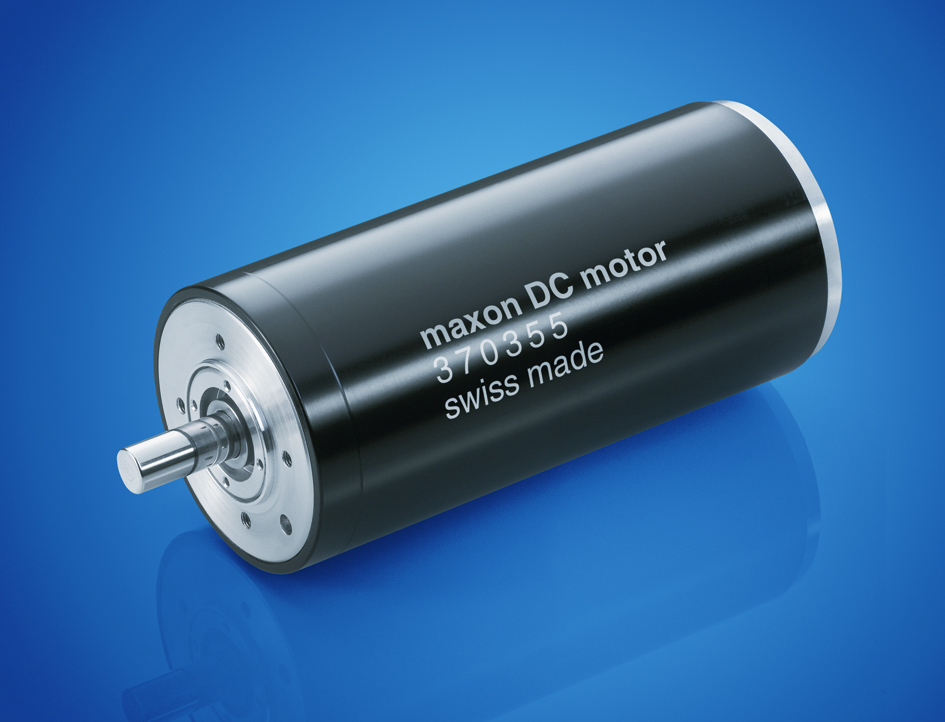

RE 50 Brushed DC Motor

maxon precision motors, inc.

RE 50 - An extremely high density 200 W power pack

Unprecedented with respect to robustness and durability as well as its power rating ratio.


Maxon’s RE 50's "heart" is, as with all mechanically commutated maxon motor drives, the ironless rotor, which results in detent-free running and minimized mass inertia. The combination of a two-pole Neodymium permanent magnet with the patented maxon winding technology results in high torque and remarkable acceleration.

The drive measures Ø50 x 108 mm and is available with four different windings. It reaches a nominal torque of up to 0.38 Nm, a nominal speed of 2800 to 5700 rpm and an efficiency of more than 90%. Low nominal voltage (24.70 VDC) and high power density make the RE 50 an excellent choice for the use in battery-powered applications, such as electric vehicles, transport and logistics equipment, mobile systems, robots, etc.

Pre-loaded bearings contribute to low-vibration and quieter running and an extensive life span. The well proven maxon modular system offers matching planetary gearheads, encoders and control systems. Look for more information soon on a dust and splash water protected RE 50 version, which will be available with an optional brake.

Contact Info:
800-865-7540 or
http://www.maxonmotorusa.com
