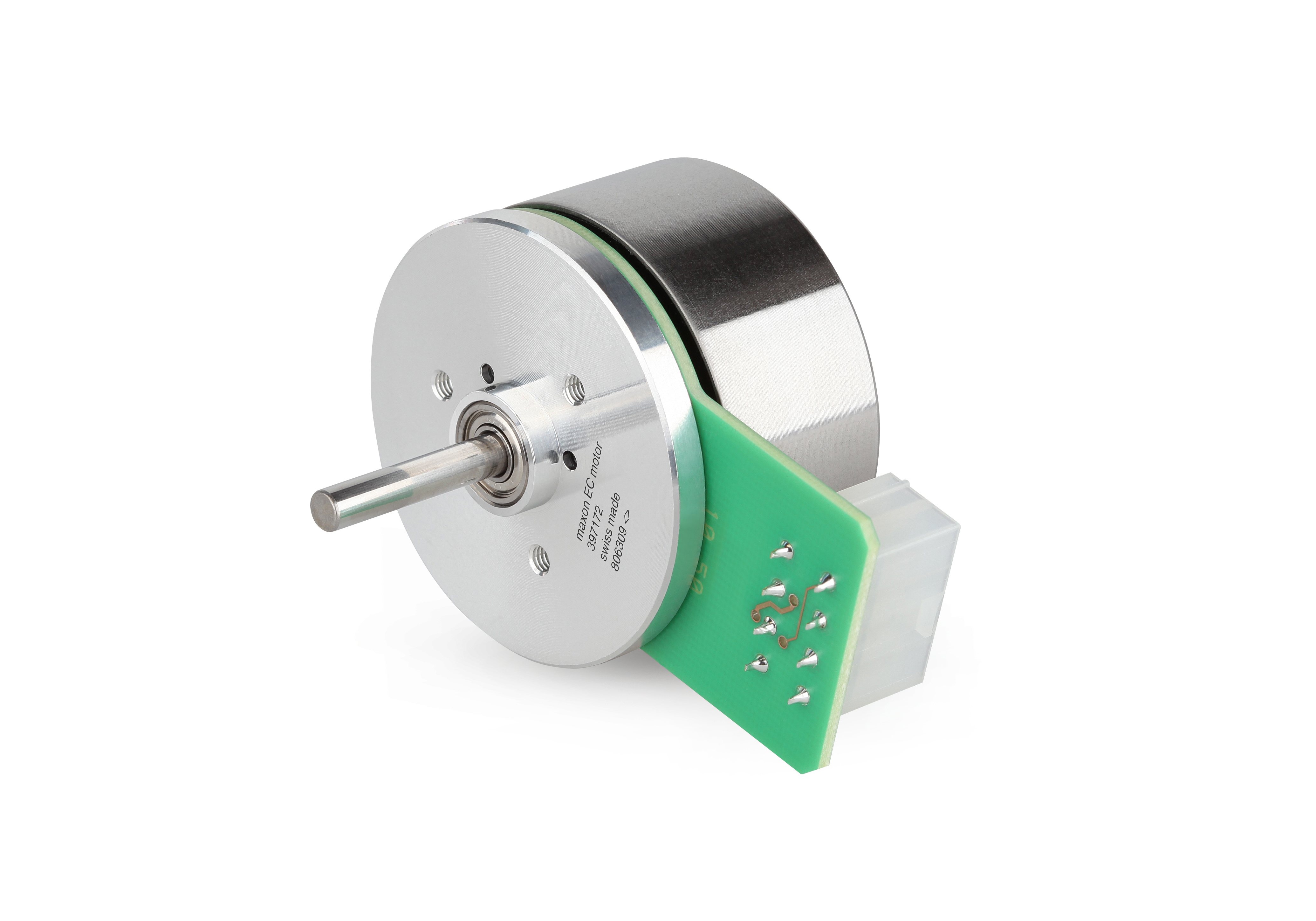

maxon's EC 45 Flat, 70 Watt Brushless DC Motor with gear and encoder options.
maxon precision motors, inc. Posted 09/15/2011
Power Pack in a compact size
maxon motor’s newly designed 70 Watts flat brushless motor delivers a max. continuous torque of 130 mNm at an efficiency of up to 85%. The new motor in its 45 mm diameter is available with Hall sensors and comes in four windings (24, 30, 36, 48 V). It can be combined with more than 54 different planetary and spur gearheads. For motion control purposes, maxon provides a wide variety of servo controllers and positioning controllers to select from.
maxon’s design of the brushless DC flat motors makes them the ideal drive for many applications. Designed as internal or external rotor motors, they are often the ideal solution when space is limited. The well thought-out and simple design means that production is largely automated, helping keep down the price.
It is the ideal choice for use in self-contained drive systems as well as in industrial automation applications.
