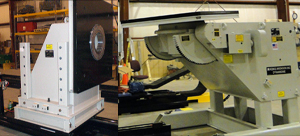

Headstocks/Tailstocks

Ellison Technologies AutomationPosted 05/09/2011

A Headstock/Tailstock with a robotic welder is the safest, most efficient method to rotate a part. It is designed for the accuracy and repeatability required for predictable results in Robotic Arc Welding Cells.

Features

• Adaptable to longer structures
• Multiple positions
• Continuous 360 degrees amp rotary ground
• Robot/positioner coordinated motion

Benefits

• 4 to 8 position indexers available
• Position accuracy of +/-5.00 x 10 -4 inches/inches of radius
• Load capacity of 2,000 lbs. @ 6" off of center
• Continuous turn solutions can be supplied through the use of a castor or ET Automation-supplied servo motor directly coupled to the harmonic drive
• Redundant braking for repeatable index stops
• Available with AC constant speed, SCR DC variable speed and DC servo drives
• Maximum of 11 RPM on standard HS/TS

Model:
